The use of a Grease Nipple Adaptor is required when the grease-gun coupler is unable to either connect onto, hold onto or seal around the lubrication point. This is particularly common when lubrication points are recessed, at an angle, blocked by another piece of machinery or when it has a non-standard nipple.
This advice on selecting the appropriate Industrial Lubrication Fitting or adaptor configuration takes you through the various grease-point type, thread standard, clearance you'll need, and also the materials, conditions of operation and pressure. It also shows the information purchasing teams should confirm with a supplier before ordering in bulk.
What Is a Grease Nipple Adaptor and When Do You Need One?
A Grease Nipple Adaptor is a connecting component that helps a grease gun, hose, extension, or lubrication line access a grease point safely and securely. It may change the connection angle, extend the reach, suit a special nipple profile, or provide a more reliable connection in a restricted area.
The machine will be equipped with a Grease Nipple Fitting which has the function to bring grease into the bearing or into the lubrication chamber. A Grease Gun Adaptor is required where the grease point is blocked, recessed, or has an incompatible fitting such as a button-head or flush fitting. In an accessible location you may be able to use a coupler, but in industrial equipment you need a coupler with a greater clearance or it will not seal well.
Start With the Grease Point on Your Equipment
As preliminary, always check the real Lubrication Point prior to choosing an adaptor, then consider the design of the nipple, the available space and the type of connection it is possible to take.
Common grease nipple types include:
- Standard hydraulic or Zerk nipple: The usual one, having a conical head which can be caught hold of by a customary jaw type coupler.
- Button-head nipple: Bigger flat circular head and used in high-volume lubrication / high capacity equipment.
- Flush nipple: nearly level with the surface of the machine requiring a pointed or flush type adaptor to reach its captive profile.
- Locking or quick connect nipple: Where vibration, hard-to-reach areas, or routine lubrication necessitates a tighter fitting.
For easy access to all grease points check for any obstructions from the surrounding guards, housings, pipes, rotating components and machine frame. When you have visual access to the grease point, take a photo and if you have the opportunity to detach a current fitting or adaptor sample do so. This will aid the supplier to identify the most suitable Grease Point Access.
Check Connection and Thread Compatibility
The most frequent problem of adpators is the mismatch of threads. Prior to buying, check the Grease Fitting Threads on the Machine Side and on the grease-gun side.
Each adaptor needs to be fitted to the nipple or extension at one end as well as the grease-gun coupling, hose or system connection on the other. The Grease Nipple Adaptor size depends on the size of the thread, the pitch and type of connection.
Don't assume that fittings that look the same can be used interchangeably. Proper Grease Fitting Compatibility will avoid cross threading, leaks and machine damage. Confirm thread diameter, thread pitch and connection type with the equipment drawing, OEM manual or on an existing sample. There are many standards for grease-fitting threads, these are some common: Metric thread, BSP/BSPT thread, NPT thread, UNF thread.
| Thread family | Typical examples | Key identification point |
|---|---|---|
| Metric | M6x1, M8x1, M10x1 | Diameter and pitch are measured in millimetres. |
| BSP / BSPT | 1/8-inch BSP, 1/4-inch BSP |
Common in many Indian and European industrial systems. |
| NPT | 1/8-inch NPT, 1/4-inch NPT |
Tapered pipe thread commonly used in hydraulic and high-pressure equipment. |
| UNF / SAE | 1/4-inch-28 UNF | Parallel thread commonly found on SAE-style fittings. |
A simple way to identify whether a thread is tapered or parallel is to hold it up to the light and see if it converges at the end. NPT or BSPT most often will have a conical shape, while parallel is generally UNF, metric parallel or BSPP. Note that a visual check is not enough; use a thread gauge or borrow a sample from the supplier.
Verify the Grease Gun Coupler Compatibility. A normal jaw type coupler will work with most conventional nipples, but button-head fittings demand a button-head coupler, while flush fittings necessitate a flush-style adaptor or needle-type fitting.
Choose the Right Shape for the Available Space
The appropriate Angled Grease Nipple Adaptor is not so much a matter of choice but more for physical access. Use a straight fitting if the grease gun can get close enough to the nipple directly. Use an angled fitting if it will be able to come into contact with the nipple while bypassing a component.

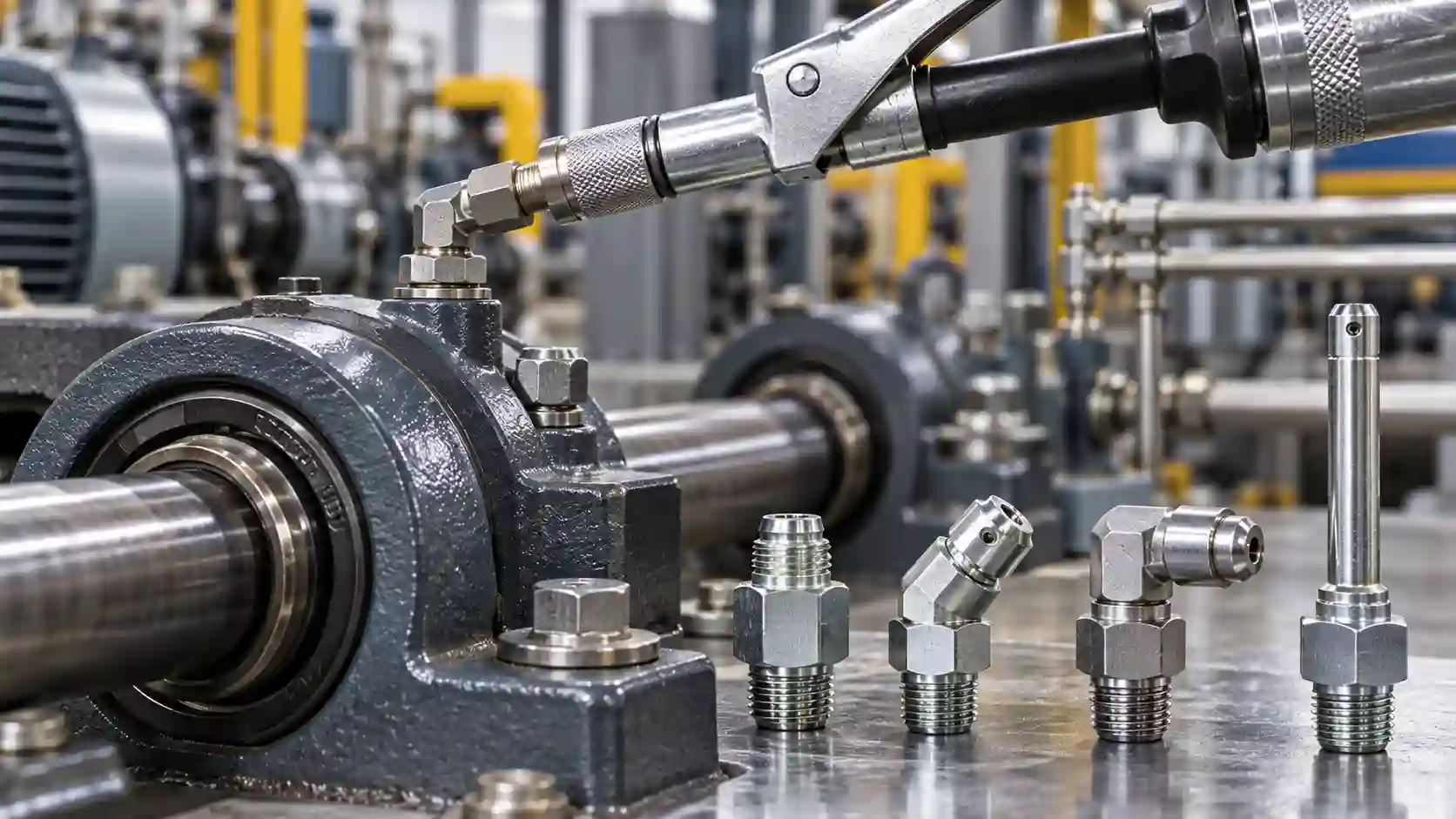

Common shape options include:
- Horizontal adaptor: Ideal for otherwise open and directly accessible grease nipples.
- 45-degree adaptor: Handy where the grease point is partially obstructed or at an angle.
- 90-degree adaptor: Suitable when the grease gun has to operate from the side or where restricted headroom is available.
- Extra long adaptor: Reaches to hidden, or protected, lubrication points.
Starting with the grease adaptor for hard-to-reach points, determine the space and approach that you have to work with. If the issue is for a side-mounted nipple, then a 90-degree adaptor might solve the issue. However, if you are having difficulty reaching a deep-set nipple, then use a long or needle-style adaptor.
Always verify the variants actually supplied by Techno Drop Engineers, prior to specifying the shape. Never select an adaptor solely on a product image. Dimensions, connection styles, and the right fit for the machine must be validated.
Assess Material, Finish, and Operating Conditions
The Metal Grease Nipple Adaptor should be able to cope with the application's pressure, environment and how it will be handled. Plated carbon steel may be appropriate in conditions of low corrosion environments located indoors. Stainless steel, or an appropriately protected finish, may be better in wash down, outdoor, humid or corrosive environments.
Ask the supplier about:
- Adaptor made of: Steel, brass, stainless steel or a suitable material for the application.
- Finish/coating of surface or corrosion protection: Very useful for outdoor plants, a washdown environment, cement plants and mine sites.
- Sealing performance: The connection shall be secured against grease bypass under working pressure.
- Working pressure rating: compare the rating of the adaptor to expected Grease Gun Pressure and system operating pressure
Never consider pressure rating to be trivial. High pressure will push grease through inferior seals, and a worn or inadequately locked coupler can leak or spill. Locking couplers can be advantageous for hand-free greasing, when vibration or high pressure grease pressures is likely.
Industrial Grease Fitting for Contamination. Moisture, dust and grit may enter the bearing through a broken or opened nipple and affect the bearing's running. Keep the environment clean by maintaining clean adaptor jaws, caps when required and keeping the nipple tips clean.
Inspect Fit and Test Before Placing a Bulk Order
Firstly, run a test on an equivalent machine before committing to bulk order. Conducting an initial test helps prove Grease Nipple Adaptor Compatibility with nipple head profile, thread connection, coupler and accessibility space. We should have proved that the grease nipple adaptor fits perfectly; the grease gun handle is practical and grease flows from the nipple without leakage.
Use this short checklist:
- Check that the grease gun can be positioned safely and comfortably.
- Pump grease slowly and observe whether it flows in a controlled manner.
- Inspect the connection for grease escaping from the sides.
Do not assume that the leakage is due to an adaptor failure. The Grease Fittings Leakage include worn nipple, broken coupler jaws, misalignment, a worn seal, poor thread contact, and excessive pressure. Inspect each component before replacing parts.
What Should Procurement Teams Confirm With a Supplier?
Procurement teams should not just ask for a ‘grease adaptor’ but complete application information. The more precise the information, the better the grease Nipple Adaptor Supplier can be able to recommend a suitable one.
Include the following in your enquiry:
- Machine type, model and application field.
- There's a picture of the grease nipple and the area where it has to be accessed.
- If known, existing nipple type.
- Thread details: diameter, pitch and standard.
When ordering from the Grease Nipple Adaptor Manufacturer in India, ask for their drawings, material information, finish details and pressure information before making the purchase. Given that the lubrication system and other industrial solutions supplied by Techno Drop Engineers are used in industries like steel, cement, power, mining, manufacturing and heavy engineering, confirmation of the application is particularly crucial.
Common Selection Mistakes to Avoid
Avoid these frequent Grease Nipple Adaptor Selection errors:
- Estimating the thread instead of calculating the diameter and pitch.
- Clearance on the grease point.
- It is assumed that all the grease-gun couplers fit all the nipples.
- Making up for a blocked or damaged grease point with an adaptor.
The correct adaptor should enhance access and connection reliability; not mask the real cause of the problem, e.g. blocked nipple, damaged check valve, contaminated bearing point etc.
Wrapping it up
The Grease Nipple Adaptor is chosen at the point of the grease—not at the grease gun. Determine the type of nipple, compatibility of thread, clearance available, nipple shape and material, test connection prior to bulk procurement.
If you need to lubricate your industrial equipment reliably, make sure to share your fitting information, machine details and operating conditions with Techno Drop Engineers to ensure you have a Grease Nipple Adaptor that works for your machine.
FAQs
1. How do I identify the correct adaptor size?
Measure the nipple thread diameter and pitch, then check the grease-gun or hose connection separately. Compare the details with an OEM drawing or share a sample/photo with the supplier.
2. Can an adaptor help reach a recessed grease nipple?
Yes. A long-reach, needle-style, or flush-type adaptor may help access a recessed nipple. Confirm the nipple profile and available clearance before ordering.
3. Are all grease-gun couplers compatible with every grease nipple?
No. Standard, button-head, flush, and locking nipples may require different coupler or adaptor designs. Always match the nipple head profile first.
4. Why does grease leak from the adaptor connection?
Common causes include worn coupler jaws, damaged seals, misalignment, incorrect thread engagement, or excessive pressure. Inspect the nipple, coupler, and adaptor before replacing any part.
5. Can I use one adaptor for all machines?
Not always. Different machines may use different nipple types, thread standards, access angles, and pressure requirements. Test the adaptor on each equipment type before bulk purchase.
6. What details should I share when requesting a grease nipple adaptor?
Share the machine model, grease-point photo, nipple type, thread details, grease-gun connection, quantity, and operating environment. Request drawings or specifications before final approval.
